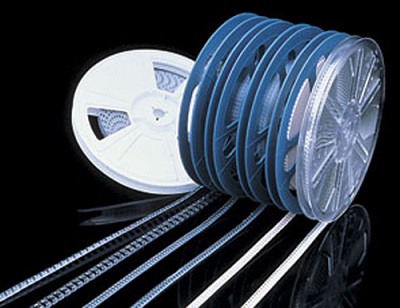

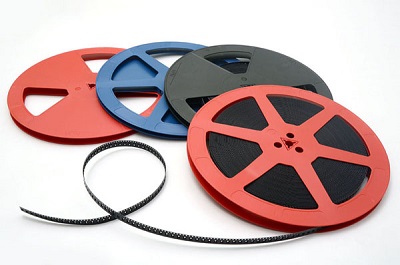

塑胶圆盘PLASTIC REEL TAPE
材质: 聚苯乙烯(PS)
提供各规格尺寸REEL

Test Items

Unit

Method

Value

熔融流率

g/10min

ASTM D-1238

<1.0

抗拉强度

Kg/cm2

ASTM D-638

180

弯曲弹性系数

Kg/cm2

ASTM D-790

17000

弯曲弹性强度

Kg/cm2

ASTM D-790

320

艾氏冲击强度(23℃)

Kg.cm/cm2

ASTM D-256

13

热变形温度(4.6kg/cm2)

ASTM D-648

100

热变形温度(18.5kg/cm2)

ASTM D-648

80

线性收缩率

%

ASTM D-955

0.7

比重

-

ASTM D-792

1.1

断点延伸率

%

ASTM D-638

20

表面电阻

OHM

ASTM D-257

105-1011



Environment

Temperature

°C

25°C ± 5°C

Humidity

%

60% ± 10% RH

Shelf time

year

1 Year





Type: 13”REEL-12mm

Symbol

A

C

D

E

F

G

T

T1

Spec

12.5±2.0 0.1

100±2.0

330±5.0

22.1±1.0

2.1±1.0

13.3±0.5

2.2±0.5

1.85±0.3



SCALE:1:1MATERAL:

Anti-static polystyrene

TITLE:

13” Plastic Reel
W=12

UNIT:MM
PROJ: 图片关键词TREATMENT:

Surface resistivity ≧109 to≦1012Ω

DWG NO:

DBMO9992311



Type: 13”REEL-16mm

Symbol

A

C

D

E

F

G

T

T1

Spec

16.5±2.0       0.1

100±2.0

330±5.0

22.1±1.0

2.1±1.0

13.3±0.5

2.2±0.5

1.85±0.3



SCALE:1:1MATERAL:

Anti-static polystyrene

TITLE:

13” Plastic Reel
W=16

UNIT:MM
PROJ: 图片关键词TREATMENT:

Surface resistivity ≧109 to≦1012Ω

DWG NO:

DBMO9992311



Type: 15”REEL-12mm

Symbol

A

C

D

E

F

G

T

Spec

12.5±2.0       0.1

100±2.0

380±5.0

22.4±1.0

2.5±1.0

13.2±0.5

2.1±0.5



SCALE:1:1MATERAL:

Anti-static polystyrene

TITLE:

15” Plastic Reel
W=12 (Hub 4”)

UNIT:MM
PROJ: 图片关键词TREATMENT:

Surface resistivity ≧109 to≦1012Ω

DWG NO:

DBMO9996911



Type: 15”REEL-16mm

Symbol

A

C

D

E

F

G

T

Spec

16.5±2.0       0.1

100±2.0

380±5.0

22.4±1.0

2.5±1.0

13.2±0.5

2.1±0.5



SCALE:1:1MATERAL:

Anti-static polystyrene

TITLE:

15” Plastic Reel
W=16 (Hub 4”)

UNIT:MM
PROJ: 图片关键词TREATMENT:

Surface resistivity ≧109 to≦1012Ω

DWG NO:

DBMO9997211


立承德( NEXTECK )的各项产品都获得长年的实积和信赖。用于半导体及电子零件的各种牌号非常齐全,对应各式各样的成形方法,具有良好的成形性与尺寸精确度。
